X-Smart Series Data Table - Gol Pump

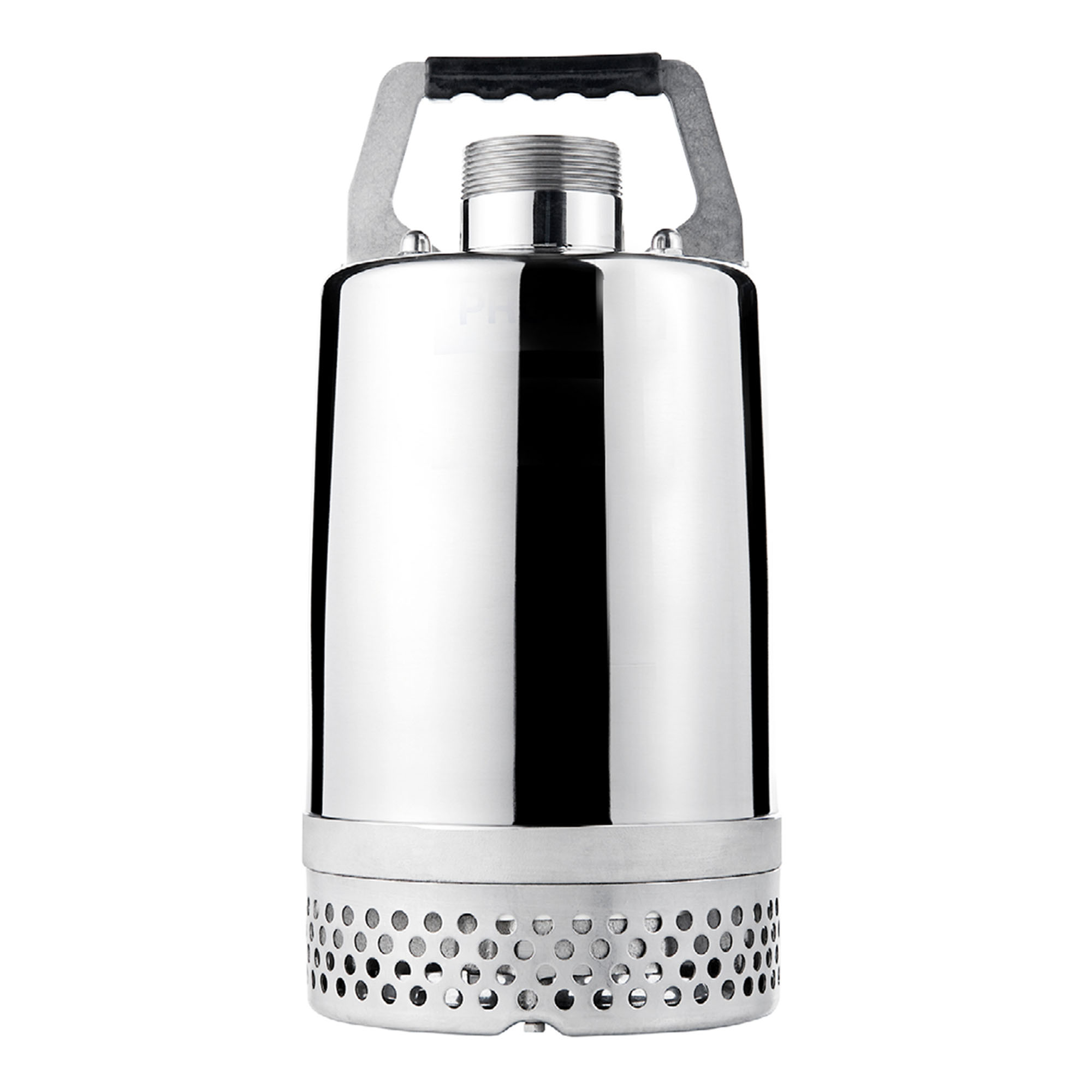

X-SMART Series

Stainless Steel 304 - Heavy Duty

Picture	Item #	Model	Voltage	Phase	Nominal Power		Performance		Outlet	Solid Passage	Data Sheet
Picture	Item #	Model	Voltage	Phase	HP	kW	Q (G/min)	H (ft.)	In.	In.	Data Sheet

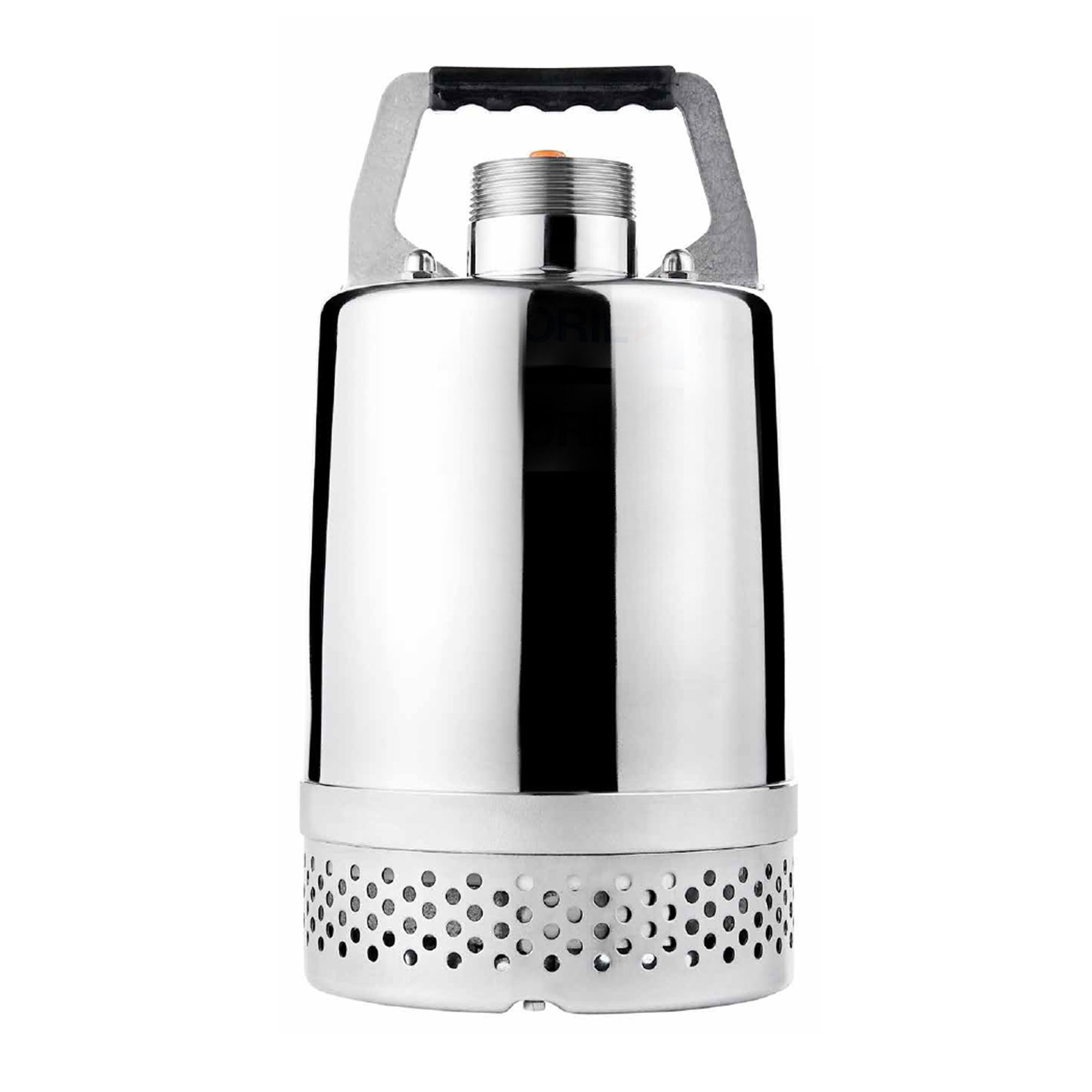

	5625210	X-SMART 400	110V	Single phase	0.5	0.4	63	33	2	0.2
	5625211	X-SMART 400A	110V	Single phase	0.5	0.4	63	33	2	0.2
	5625215	X-SMART 750	110V	Single phase	1	0.75	85	49	2	0.3
	5625216	X-SMART 750A	110V	Single phase	1	0.75	85	49	2	0.3

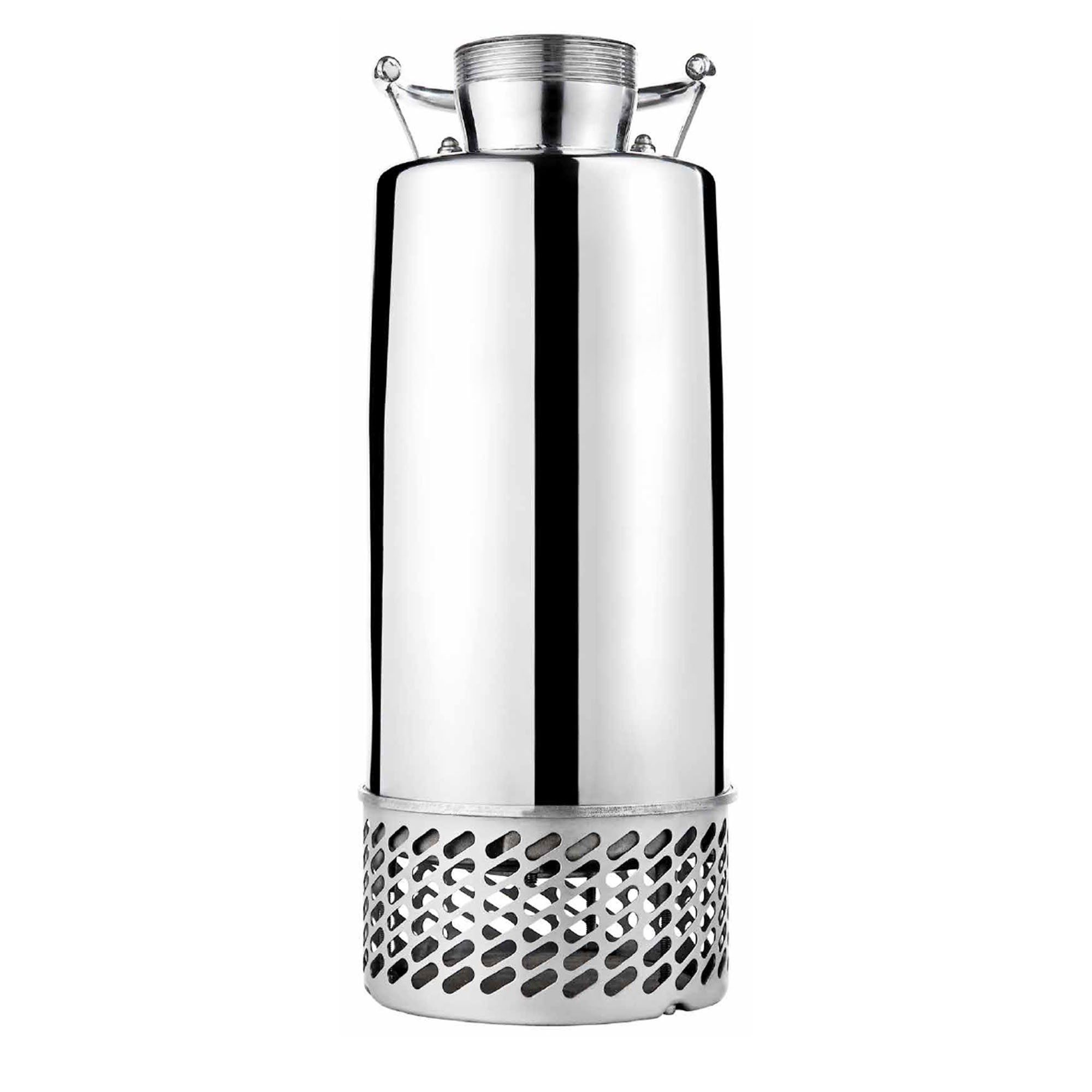

	5625220	X-SMART 215	110V	Single phase	2	1.5	137	64	2	0.3
	5625222		200V	Single phase
	5625226		220V	Three phase
	5625224	X-SMART 215A	220V	Single phase	2	1.5	137	64	2	0.3

X-VOX Series

Stainless Steel 304 - Heavy Duty

Picture	Item #	Model	Voltage	Phase	Nominal Power		Performance		Outlet	Solid Passage	Data Sheet
Picture	Item #	Model	Voltage	Phase	HP	kW	Q (G/min)	H (ft.)	In.	In.	Data Sheet
	5637101	X-VOX 208	110V	Single phase	1	0.75	87	41	2	1.6
	5637103	X-VOX 208	220V	Single phase	1	0.75	87	41	2	1.6
	5637102	X-VOX 208A	110V	Single phase	1	0.75	87	41	2	1.6
	5637104	X-VOX 208A	220V	Single phase	1	0.75	87	41	2	1.6
	5637105	X-VOX 208T	220V	Three phase	1	0.75	87	41	2	1.6

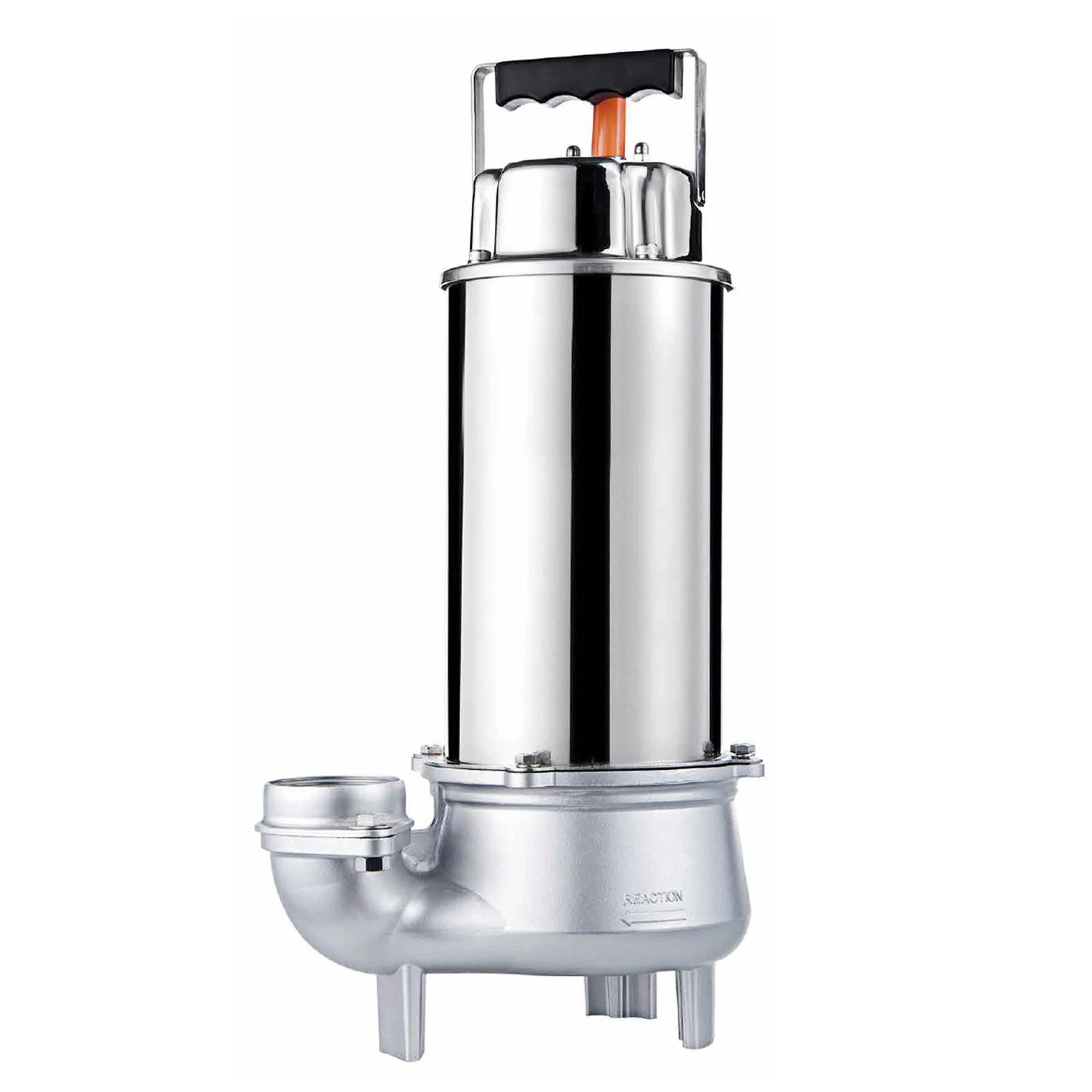

	5637106	X-VOX 215	110V	Single phase	2	1.5	122	59	2	1.5
	5637108	X-VOX 215	220V	Single phase	2	1.5	122	59	2	1.5
	5637110	X-VOX 215T	220V	Three phase	2	1.5	122	59	2	1.5
	5637109	X-VOX 215A	220V	Single phase	2	1.5	122	59	2	1.5

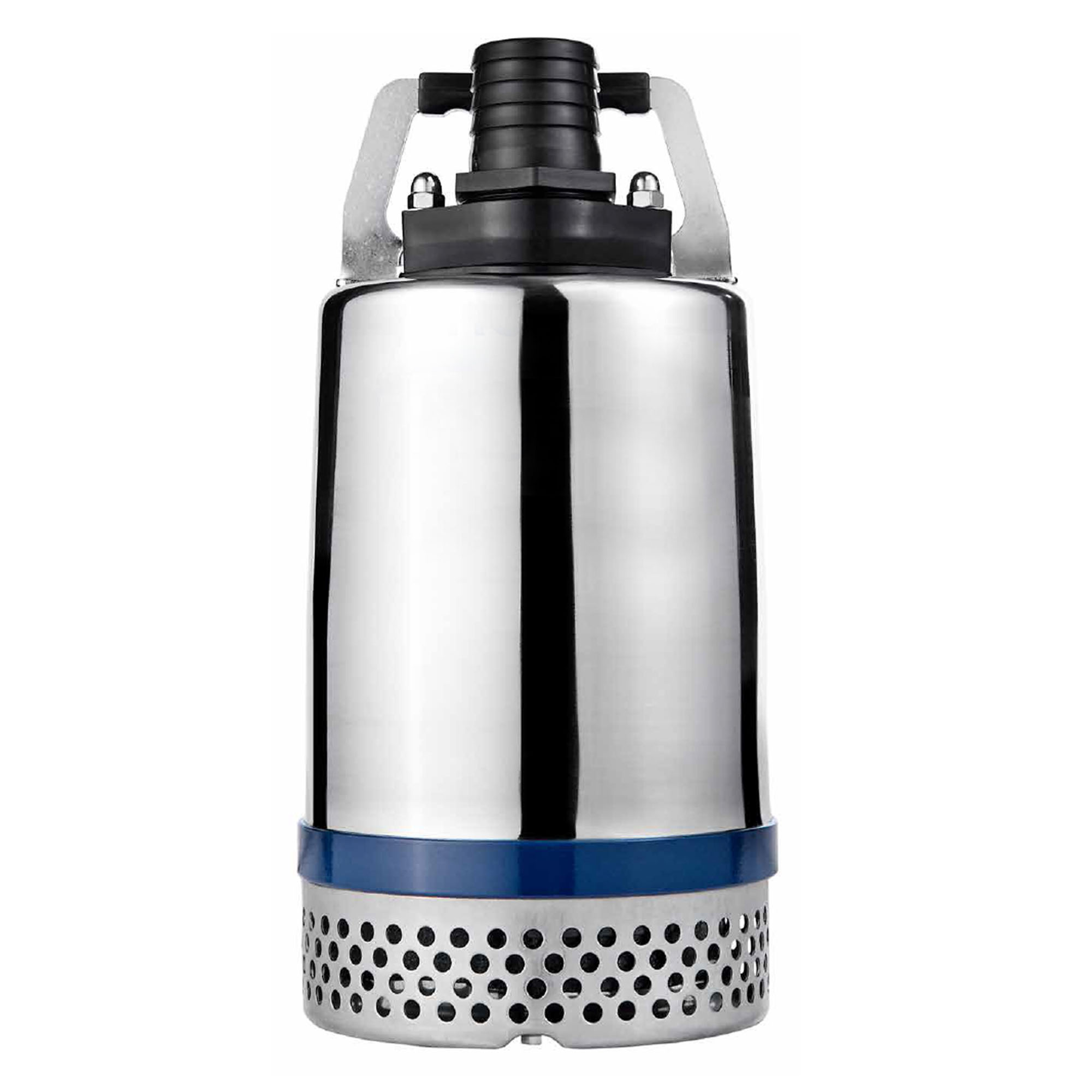

SMART Series

Cast Iron - Heavy Duty

Picture	Item #	Model	Voltage	Phase	Nominal Power		Performance		Outlet	Solid Passage	Data Sheet
Picture	Item #	Model	Voltage	Phase	HP	kW	Q (G/min)	H (ft.)	In.	In.	Data Sheet
	5625101	SMART 400	110V	Single phase	0.5	0.4	63	33	2	0.2
	5625103	SMART 400	220V	Single phase	0.5	0.4	63	33	2	0.2
	5625102	SMART 400A	110V	Single phase	0.5	0.4	63	33	2	0.2
	5625104	SMART 400A	220V	Single phase	0.5	0.4	63	33	2	0.2

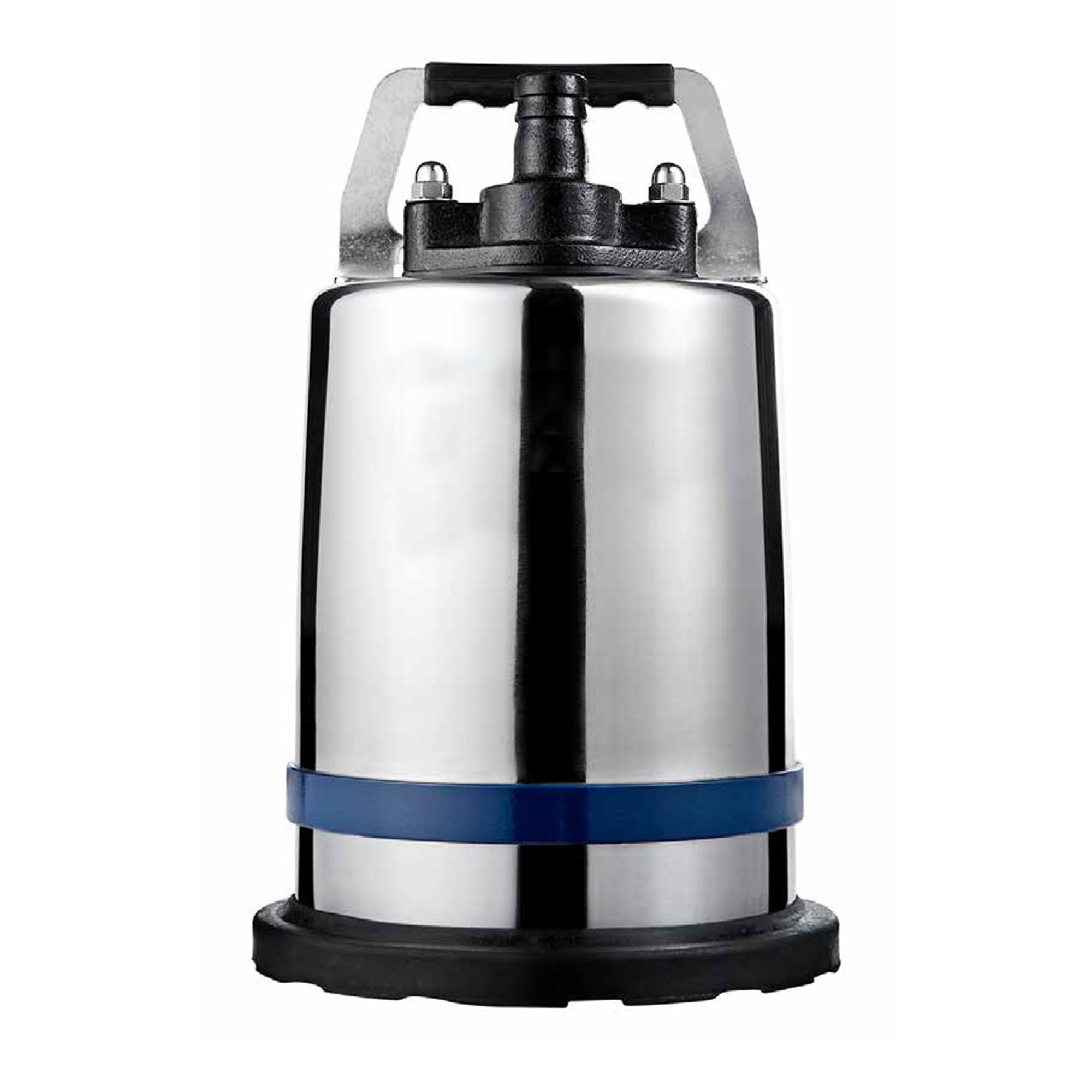

	5625106	SMART BASE 400	110V	Single phase	0.5	0.4	63	36	2	0.1
	5625107	SMART BASE 400	220V	Single phase	0.5	0.4	63	36	2	0.1
	5625108	SMART 750	110V	Single phase	1	0.75	85	49	2	0.3
	5625110	SMART 750	220V	Single phase	1	0.75	85	49	2	0.3
	5625109	SMART 750A	110V	Single phase	1	0.75	85	49	2	0.3
	5625111	SMART 750A	220V	Single phase	1	0.75	85	49	2	0.3

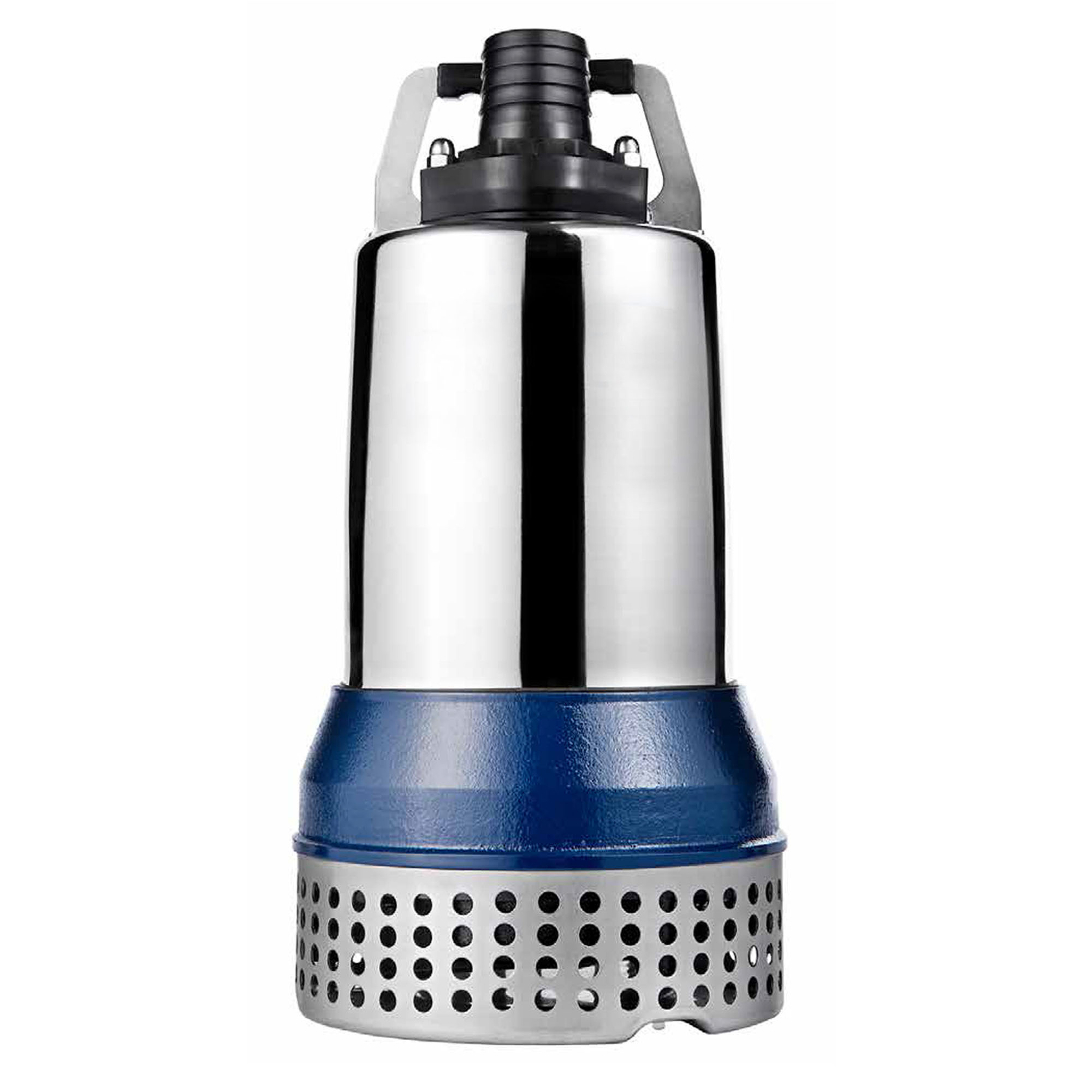

	5625113	SMART 1500	110V	Single phase	2	1.5	119	66	2	0.4
	5625114	SMART 1500	220V	Single phase	2	1.5	119	66	2	0.4
	5625115	SMART 1500A	220V	Single phase	2	1.5	119	66	2	0.4
	5625116	SMART 1500T	220V	Three phase	2	1.5	119	66	2	0.4

SMART LITE Series

Cast Iron - Heavy Duty

Picture	Item #	Model	Voltage	Phase	Nominal Power		Performance		Outlet	Solid Passage	Data Sheet
Picture	Item #	Model	Voltage	Phase	HP	kW	Q (G/min)	H (ft.)	In.	In.	Data Sheet

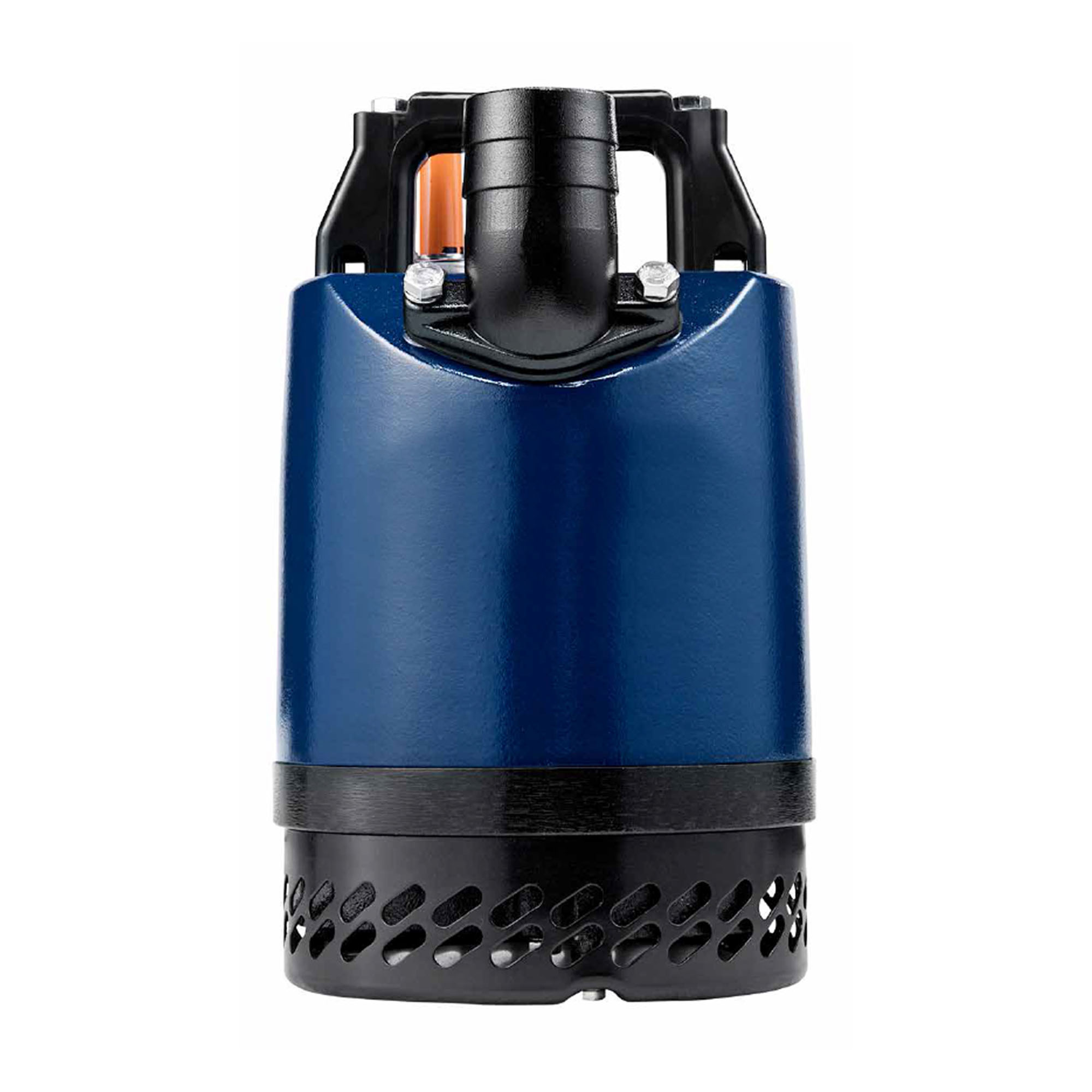

	5625150	SMART LITE 400	110V	Single phase	0.5	0.4	63	36	2	0.3
	5625152	SMART LITE 400	220V	Single phase	0.5	0.4	63	36	2	0.3
	5625151	SMART LITE 400A	110V	Single phase	0.5	0.4	63	36	2	0.3
	5625153	SMART LITE 400A	220V	Single phase	0.5	0.4	63	36	2	0.3

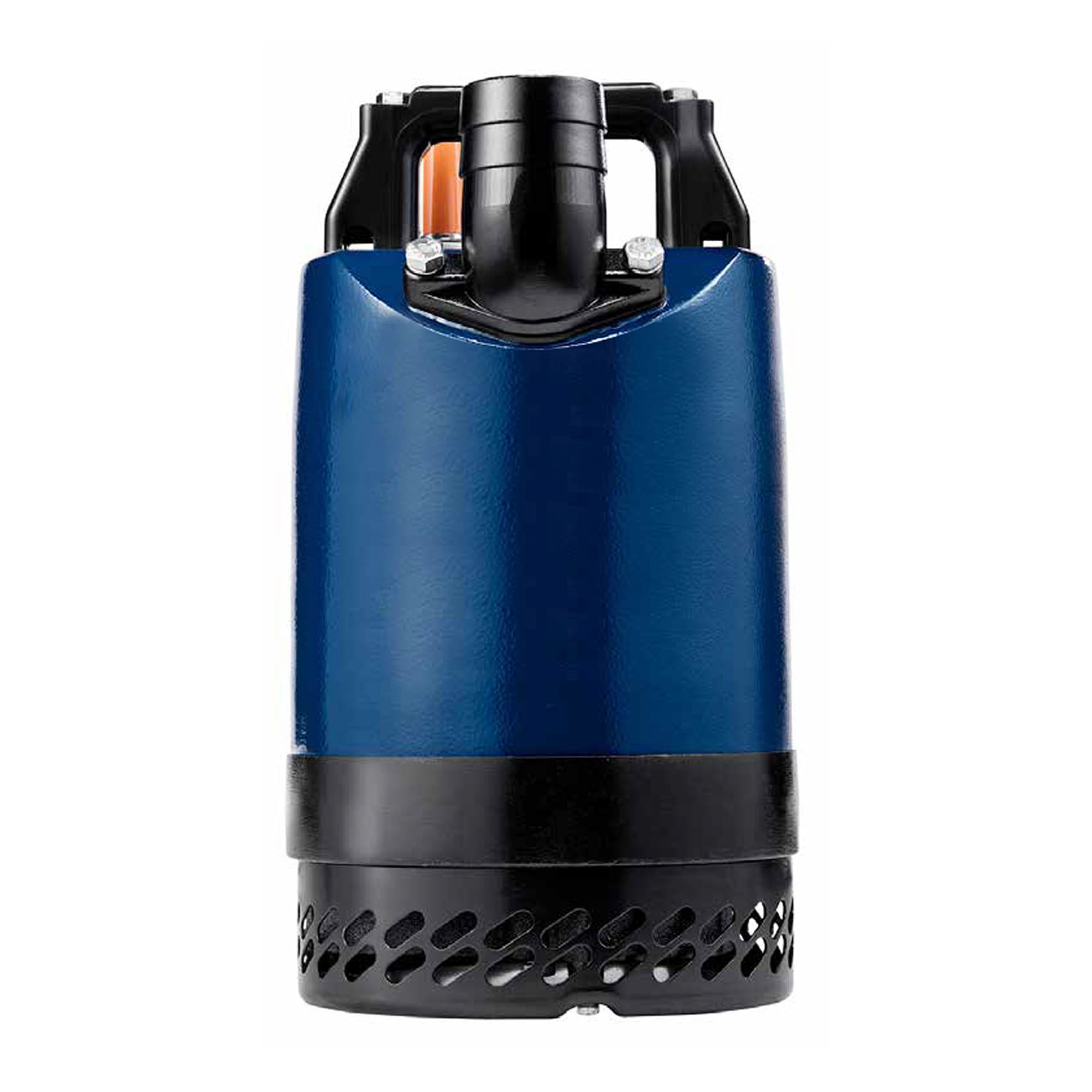

	5625154	SMART LITE 750	110V	Single phase	1	0.75	85	49	2	0.3
	5625156	SMART LITE 750	220V	Single phase	1	0.75	85	49	2	0.3
	5625155	SMART LITE 750A	110V	Single phase	1	0.75	85	49	2	0.3
	5625157	SMART LITE 750A	220V	Single phase	1	0.75	85	49	2	0.3

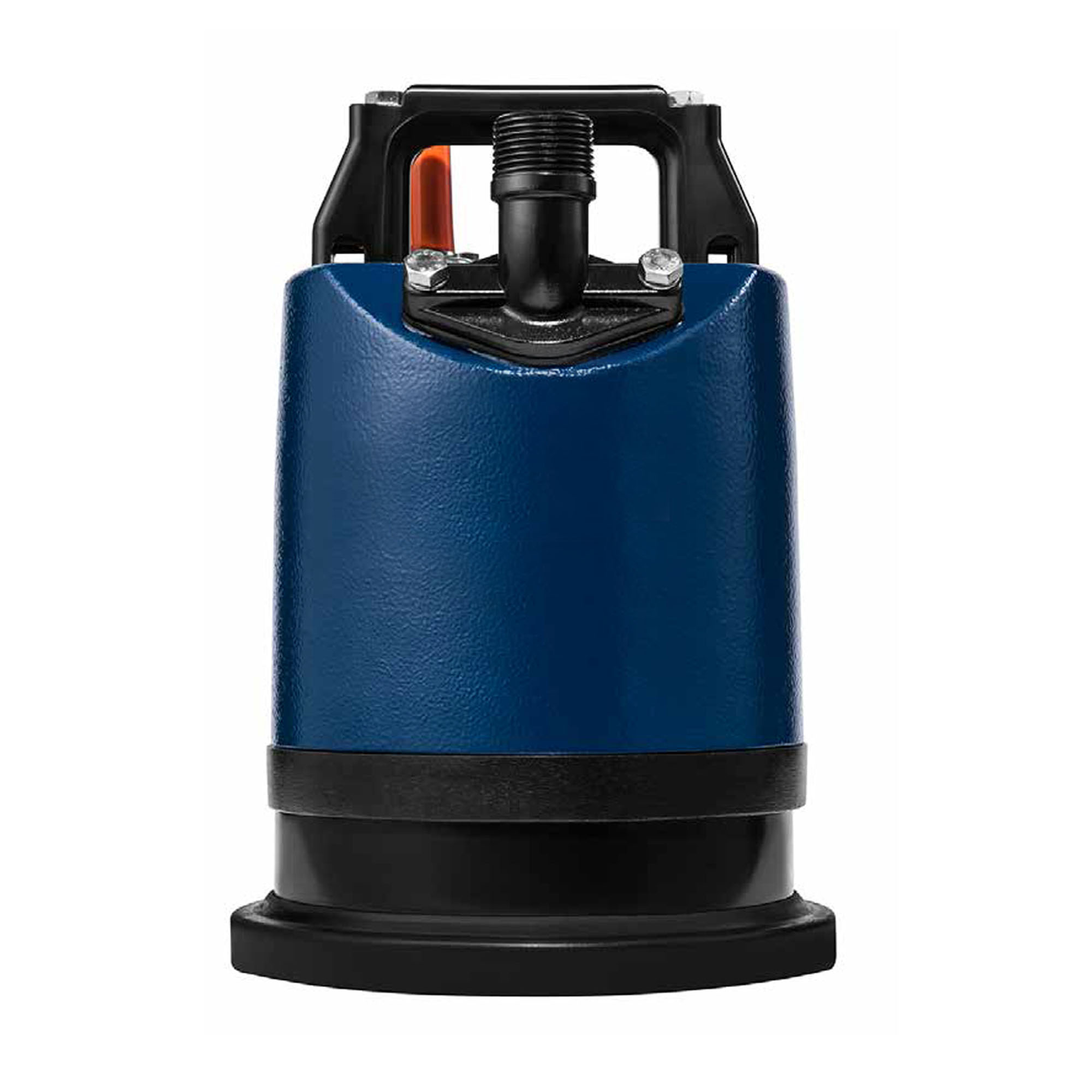

	5625154	SMART LITE BASE 400	110V	Single phase	0.5	0.4	63	36	2	0.1
	5625156	SMART LITE BASE 400	220V	Single phase	0.5	0.4	63	36	2	0.1

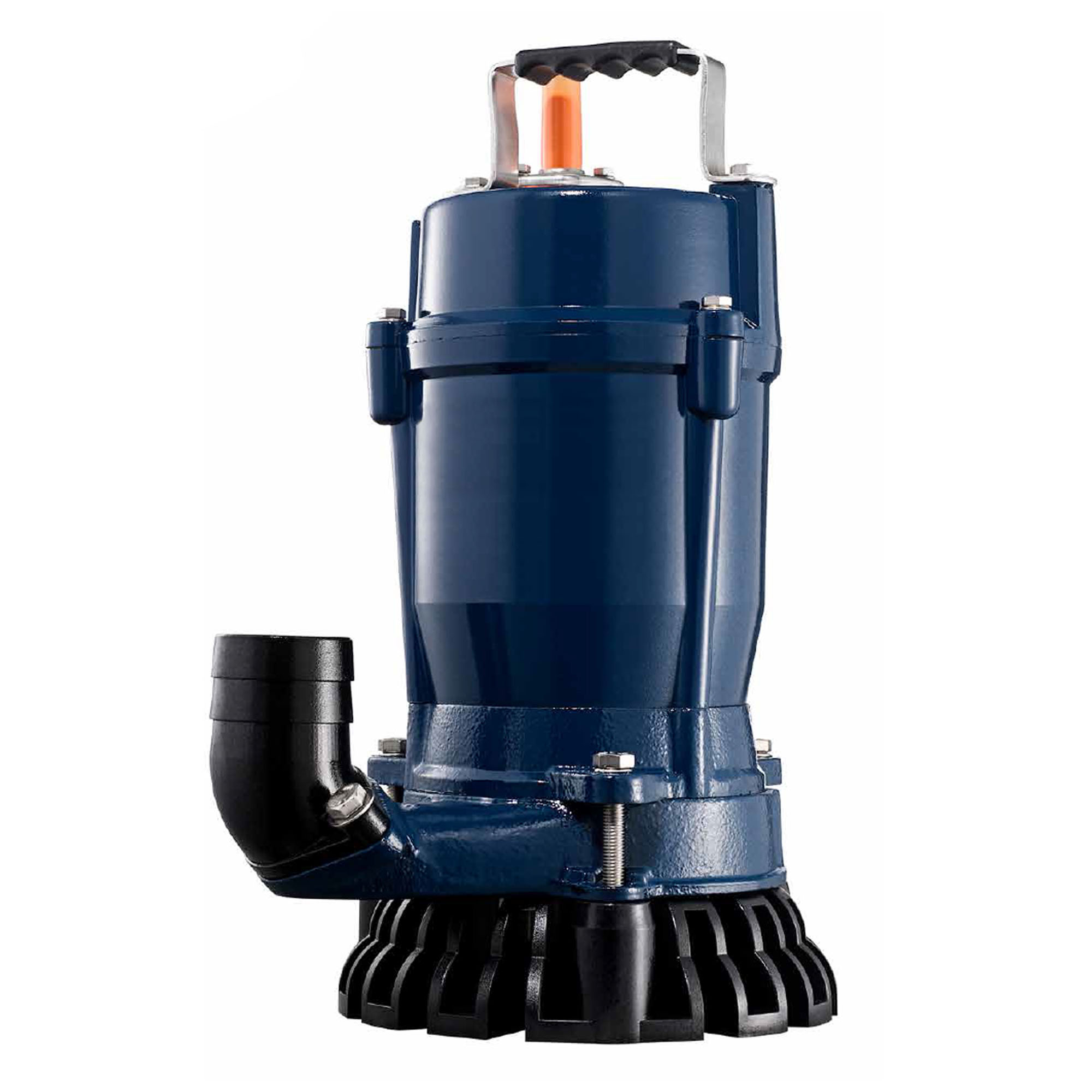

SMART VOX Series

Cast Iron - Heavy Duty

Picture	Item #	Model	Voltage	Phase	Nominal Power		Performance		Outlet	Solid Passage	Data Sheet
Picture	Item #	Model	Voltage	Phase	HP	kW	Q (G/min)	H (ft.)	In.	In.	Data Sheet
	5625180	SMART VOX 400	110V	Single phase	0.5	0.4	62	36	2	0.3
	5625182	SMART VOX 400	220V	Single phase	0.5	0.4	62	36	2	0.3
	5625181	SMART VOX 400A	110V	Single phase	0.5	0.4	62	36	2	0.3
	5625183	SMART VOX 400A	220V	Single phase	0.5	0.4	62	36	2	0.3
	5625184	SMART VOX 750	110V	Single phase	1	0.75	82	56	2	0.3
	5625186	SMART VOX 750	220V	Single phase	1	0.75	82	56	2	0.3
	5625185	SMART VOX 750A	110V	Single phase	1	0.75	82	56	2	0.3
	5625187	SMART VOX 750A	220V	Single phase	1	0.75	82	56	2	0.3
	5625188	SMART VOX BASE 400	110V	Single phase	0.5	0.4	58	36	2	0.1
	5625189	SMART VOX BASE 400	220V	Single phase	0.5	0.4	58	36	2	0.1

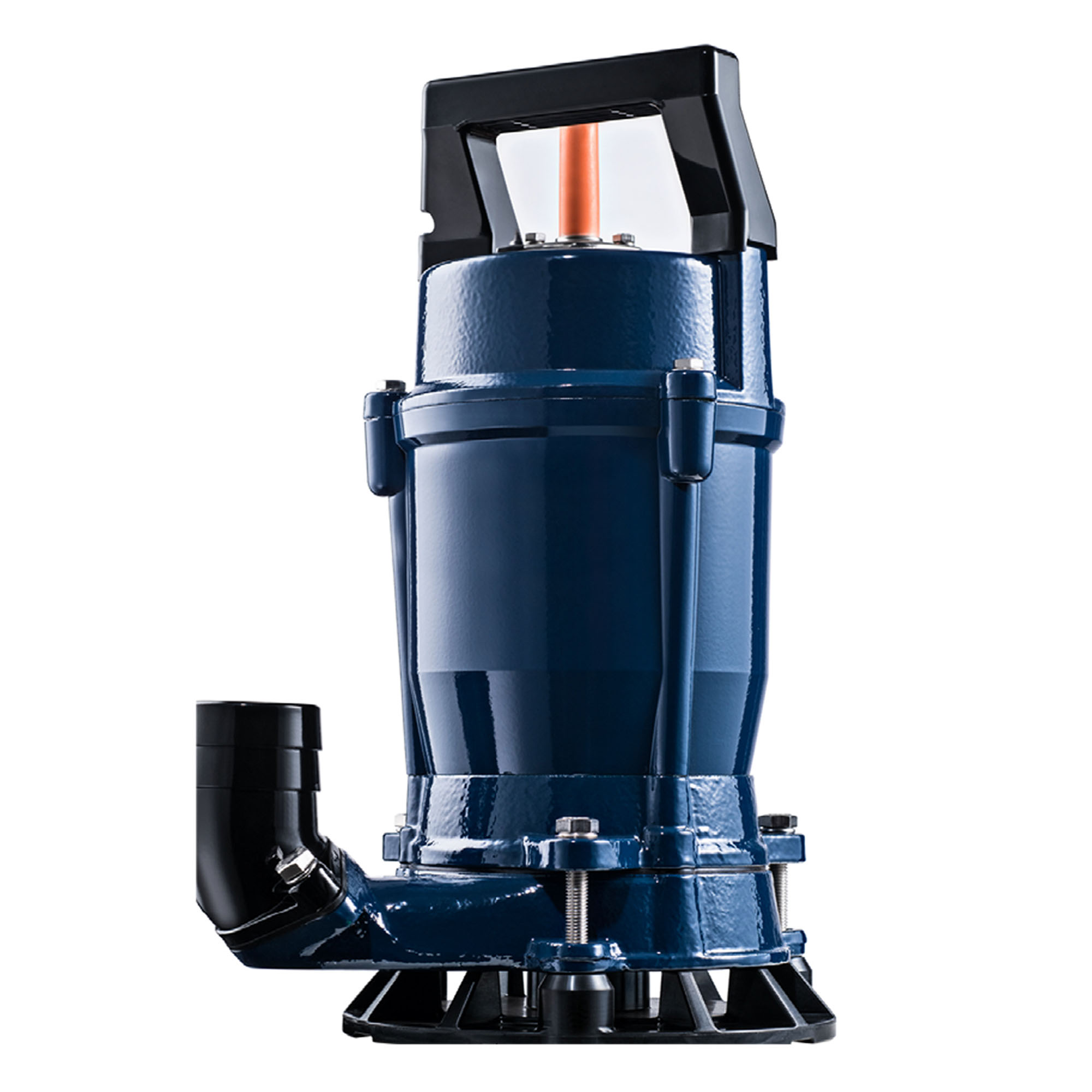

	5625190	SMART VOX BASE 750	110V	Single phase	1	0.75	48	46	2	0.1
	5625191	SMART VOX BASE 750	220V	Single phase	1	0.75	48	46	2	0.1
