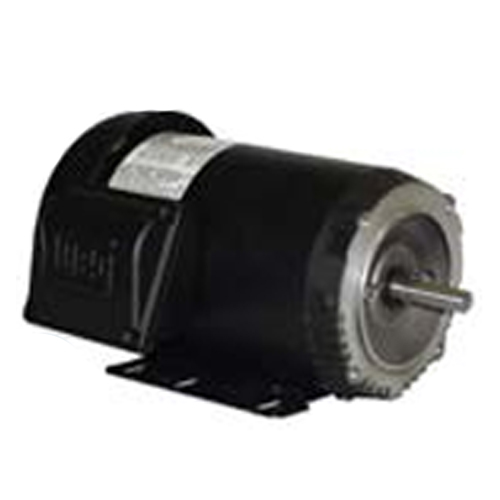

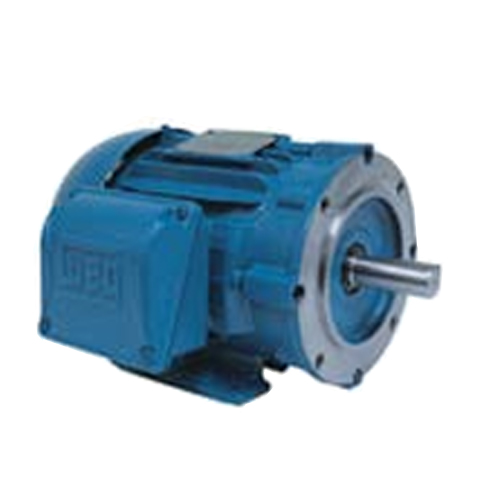

W22 – TEFC – C-Face – Foot Mount WEG Electro Motors

Description

WEG Three Phase General Purpose Motors – Model# W22 – Rolled Steel – TEFC – C-Face – Foot Mount

Download WEG Electromotors General Catalogue: Download

Standard Features:

• Rated Output: 0.25 to 300 HP
• Number of Poles: 2 to 6
• Class F insulation
• Frame Sizes: NEMA 56 to 254/6T
• Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
• F1 mount as standard
• Foot mount / C-face / Footless availability
• Enclosure: TEFC
• Aluminum endshields
• Cast Iron flanges for improved strength (182/4TC and larger)
• Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required
• Double shielded ball bearings on frames 56 to 213/5T.
• Versions: General Purpose, Jet Pump, Close-coupled Pump type “JM” and “JP”, and Crop Dryer Optional Features:
• IP56 ingress protection
• F2 and F3 mount
• Enclosure: TEAO and TENV
• Regreasable bearings optional on 182/4T and 213/5T
• Double sealed ball bearings and/or bearing cap
• Drip cover
• Internal AEGIS® SGR
• Space heaters and thermal protection (thermostats and thermistors)
• Refer to the mod section for more options
