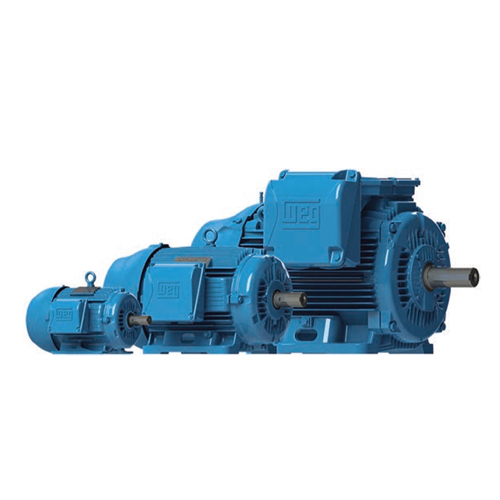

W22 – Cast Iron Foot Mount WEG Electro Motors

Description

WEG Three Phase General Purpose Motors – Model# W22 – Cast Iron – TEFC – Foot Mount

Download WEG Electromotors General Catalogue: Download

Standard Features:

• 50/60 Hz rated (380V on nameplate – 400/415 available)
• Rated 50HZ at same horsepower up to 250HP 1.0 Service Factor for 2,4 & 6 pole motors
• Rated 50Hz at same horsepower up to 125HP 1.0 Service Factor for 8 pole motors
• Class F insulation (impregnation resin and magnet wire are class H) F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter
• Cast iron frames: regreasable ball bearings (frames 254T and up)  Gasketed conduit box

Inverter Rated*

• 1000:1 for Variable Torque

NEMA Premium®

• 20:1 Constant Torque up to 250HP
• 6:1 Constant Torque 300HP and up
• * Insulated NDE housing standard on L447/9T and above
