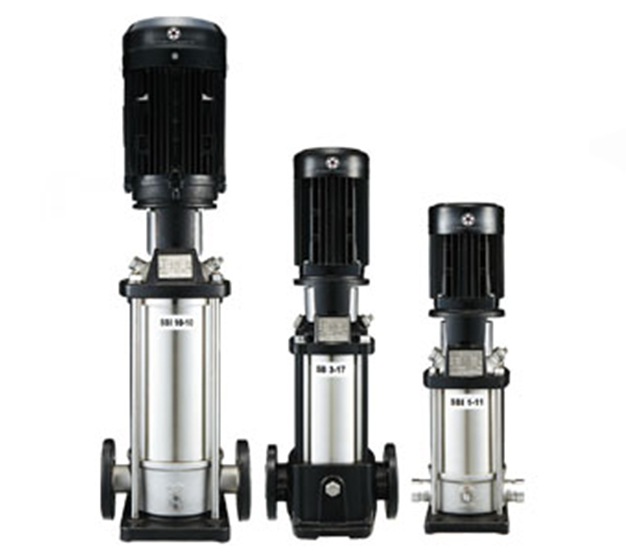

Gol Pumps Multistage Pumps — Model# SBN
The SB, SBI and SBN pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBI and SBN pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.
Gol Pumps Multistage Pumps — Model# SBK/CBK Series
Download Product Datasheet: Download
| AC Voltage | 110-220v, 220/240 v, 220/830v |
|---|---|
| Phase | Single Phase, Three Phase |
| Nominal Power | 0.37 – 18.5 kW |
| Nominal Flow (m3/h) | 1 – 64 (50Hz), 1.2 – 77 (60Hz) |
| Flow Range (m3/h) | 0.7 – 85 (50Hz), 0.8 – 102 (60Hz) |
| Max Pressure (bar) | 21 – 26 (60Hz), 22 – 32 (50Hz) |
| Fluid Temperature (C) | -10 – +90 |
| Brand | Gol Pumps |
