GO-0511P (Cast Iron)

GO-0511P (Cast Iron)

SKU 3810101 Categories AC Pump, Centrifugal Pump, Peripheral Pumps Tags 1HP, Cast Iron, Peripheral Pumps

Applications

Ideal for pumping clean, non-volatile liquids without fibers or solids in below applications:

Small-scale booster systems.
Washing systems.
Garden sprinkling.
Small-scale irrigation.
Machinery applications such as welders and chillers.
Increasing the water pressure in the pipe.

Features

Develop good pressure at low flows by using low-powered motors.

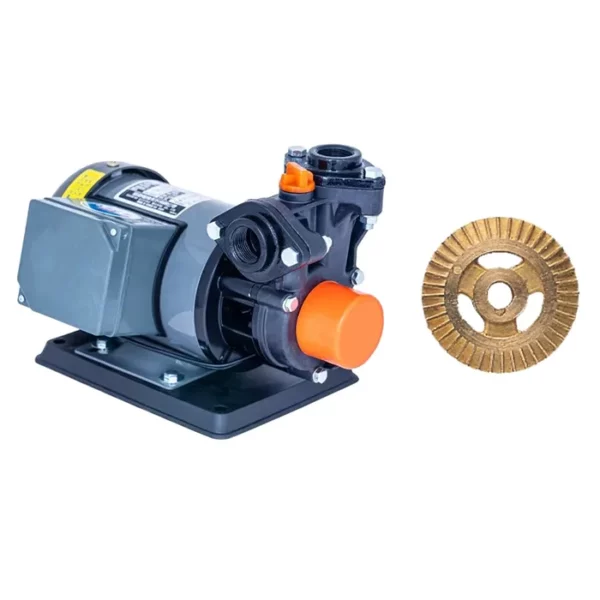

Cast iron made pump body with an inserted bronze to prevent rust from jamming the bronze alloy impeller.
Equipped Thermo-sensing “loss of prime” pump protector: Automatically Cut Off power source when there is no water.
The motor is equipped with an overheat protection sensor.

Where to buy:

Pump Supermarket.com

Description

1HP Peripheral Pump, 115V, 1Phase, 792 GPH, Model# GO-0511P (Cast Iron)

Download Technical Data Sheet: Download

Gol Pump Go Series

Performance Table

Brand	Gol Pumps
Model	GO-0511P
Type	Peripheral
Voltage (V)	115
Phase	1
Horsepower	1
Max Head (ft.)	144.4
Max Flow (GPH)	792
Inlet/Outlet (in.)	1″ x 1″
Material	Cast Iron
Weight (lb.)	22

Flange (inch)		Pump Installation Size (inch)
Inlet	Outlet	A	B	C	D	E
1	1	8.1	1	5.3	7.3	11.8

Performance Curve

Dimensions

Parts List

Installation

Additional information

Application	Cooling and Heating Systems, Domestic Water Supply, Irrigation and Garden Use, Pressure Boosting
AC Voltage	110-115 volts
Phase	Single Phase
Nominal Power	0.4 kW, 0.5 HP
Performance	H (ft.) = 144, Q (G/min)= 13
Brand	Gol Pumps
