EDP11

Description

WEG LV Variable Frequency Drives and Soft Starters – Model# EDP11

Download Product Catalogue: Download

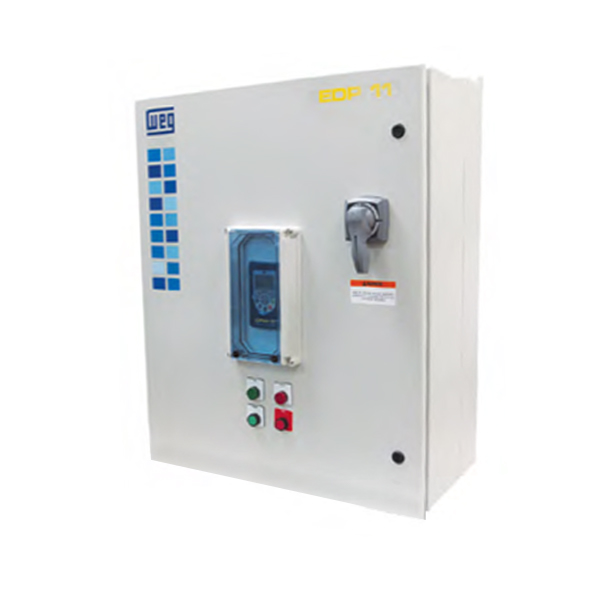

The Engineered Drive Panel is an industrial general purpose AC motor control and protection package. It is designed for simple and quick installation and start-up, requiring only input power and output motor connections. There are two enclosure variants available such as NEMA 12 ventilated and NEMA 3R for Outdoor Installations. The Engineered Drive Panel is built to complement the ruggedness and
reliability of WEG motors, providing a complete, simple, and cost effective AC motor control, monitor and protection solution.

3-Contactor Bypass Option
• NEMA 12 or NEMA 3R version
• AC3 full rated by-pass contactor
• Drive input and output contactors
• Motor overload relay
• E-Stop Mushroom style pushbutton
• Enclosure size to be determined

HOA/POT/TB Option
• HOA = Hand-OFF-Auto
• POT = Potentiomenter for speed
reference
• TB = Auxiliary control terminal block
for remote command

NEMA 12 Features
• CFW11 Drive
• Indoor Rated
• ED1-ED4: non-ventilated and wall mounted
• ED5: non-ventilated and floor mounted
• ED6-ED10: ventilated and floor mounted
• Circuit Breaker with through door handle
• CFW11 VFD (Dual DC choke built-in)
• Fused 480V/120V CPT
• Internal Fan
• Heat sink through the back
• Motor Terminal Block
• Door mounted keypad
• Start / Stop Pushbuttons
• Run/Fault Pilot Lights
• Keypad cover – same as GPH2
• Drive and controls mounted in NEMA 4 section of
panel; heat sink is external and rated NEMA 12
NEMA 3R Features
• NEMA 12 features plus:
• Outdoor Rated
• Weather kit (rain/sun/snow shield)
• Panel space heater + thermostat
• Lightning arrestor
• Service entrance rated
