Description
Download Product Technical Data: Download
| Pump Specifications | |
| Capacity [h – USGPM] | 132 |
| Head [ft.] | 40 |
| Impeller diameter [in.]/type | 4 blades opened |
| Hose adaptor diameter [in.] | 3 |
| Cross section diameter [in.] | 0.8 |
| Weight (without cable) [lbs.] | 407 |
| Electric Motor | |
| Power [kW-HP] | 3.7-5 |
| Voltage [V]/Current [A] | 220/11.1 |
| Phases/Poles/Frequency [Hz] | 3/4/60 |
| Speed [RPM] | 1750 |
| Insulation class | H |
| Power cable 20m (IEC 60245- 4) | H07RN-F 4G10 |
| Materials | |
| Casing | Spheroidal cast iron EN-GJS-500-7 (EN 1563) |
| Motor housing | Spheroidal cast iron EN-GJS-500-7 (EN 1563) |
| Wear parts | High chrome EN-GJN-HV600 (XCr18) (EN 12513) |
| Main shaft | High tensile steel 39NiCrMo3 (AISI 9840) |
| Seals / Lubricant | |
| Motor side seals | 1 mechanical seal (silicon carbide in oil bath) |
| Impeller side seals | 1 mechanical seal (silicon carbide in oil bath) + 4 lip seal (2 BUNA + 2 TPU) |
| Oil type | ISO 32 |
Dimensions (in.)
| H | W | D | F | H1 | PG |
| 31.2 | 15.4 | 14.4 | 13.5 | 20 | 3.2 |

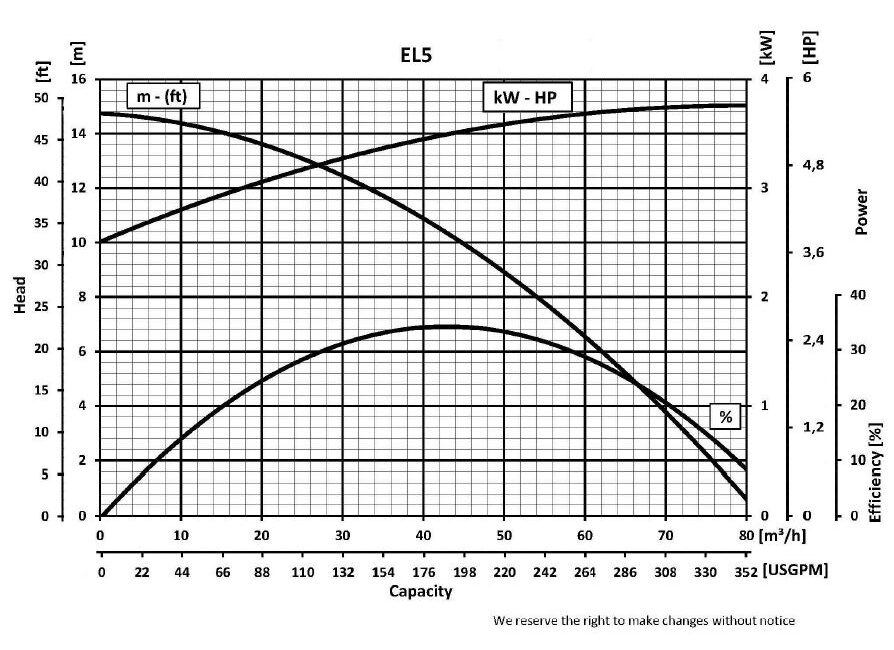

Performance Curves
