Description
Download Product Technical Data: Download
| Pump Specifications | |
| Capacity [h – USGPM] | 616 |
| Head [ft.] | 56 |
| Impeller diameter [in.]/type | (15)/2 blades opened |
| Flanged bore size [in.] | 6 |
| Cross section diameter [in.] | 1.4 |
| Weight (without cable) [lbs.] | 1530 |
| Electric Motor | |
| Power [kW-HP] | 18-25 |
| Voltage [V]/Current [A] | 460/30.8 |
| Phases/Poles/Frequency [Hz] | 3/6/60 |
| Speed [RPM] | 1180 |
| Insulation class | H |
| Power cable 20m (IEC 60245- 4) | H07RN-F 4G16 |
| Materials | |
| Casing | Spheroidal cast iron EN-GJS-500-7 (EN 1563) |
| Motor housing | Cast iron EN-GJL-250 (EN 1561) |
| Wear parts | High chrome EN-GJN-HV600 (XCr18) (EN 12513) |
| Main shaft | High tensile steel 39NiCrMo3 (AISI 9840) |
| Seals / Lubricant | |
| Motor side seals | 2 lip seals (BUNA) |
| Impeller side seals | 5 lip seals (3 BUNA + 2 PTFE) + 1 V-RING (TPU) |
| Oil type | ISO 320 |

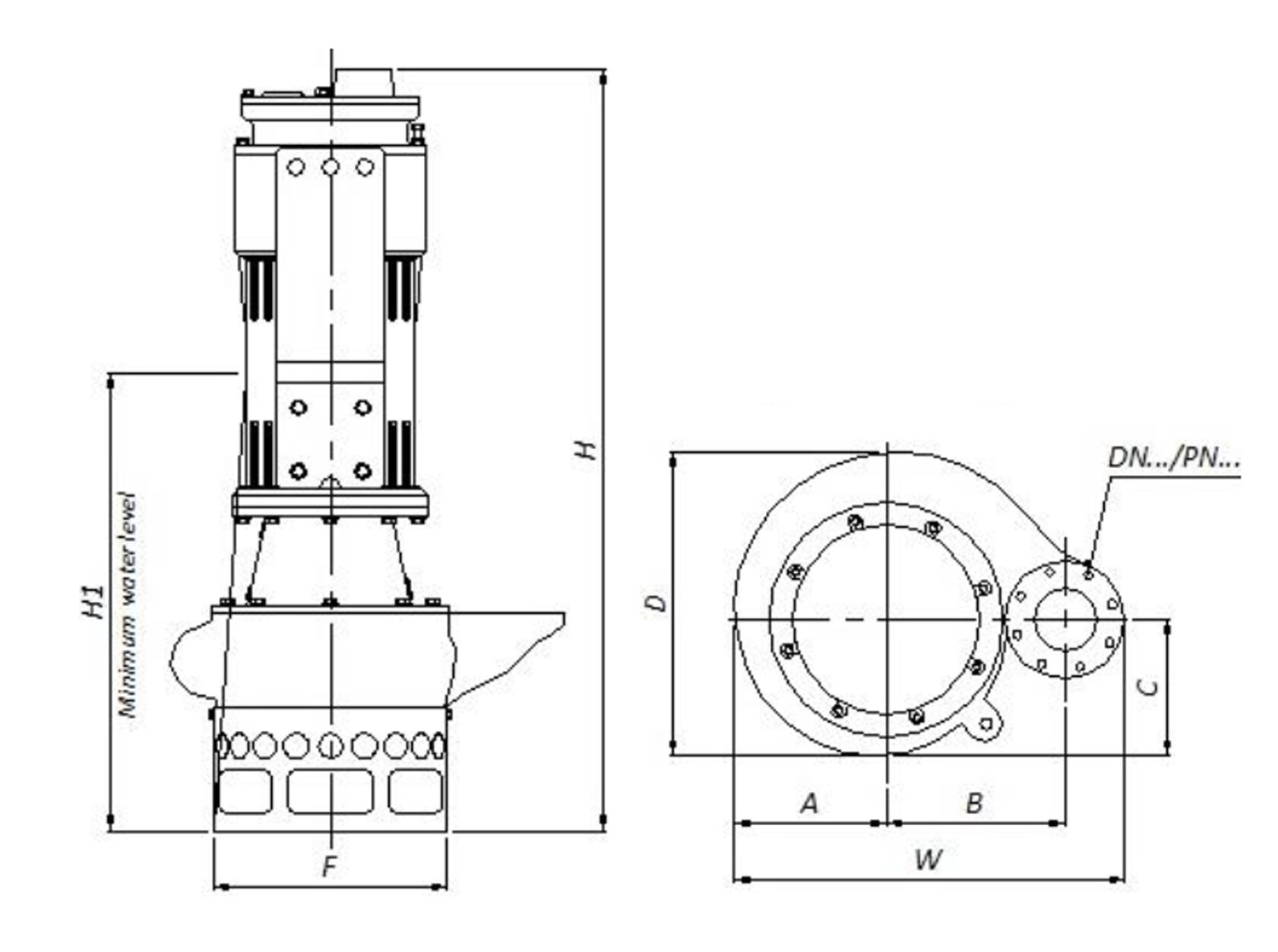

Dimensions (in.)
| H | W | D | F | H1 | A | B | C |
| 54.4 | 31.8 | 26.8 | 21.4 | 36.2 | 13.4 | 14 | 5.8 |

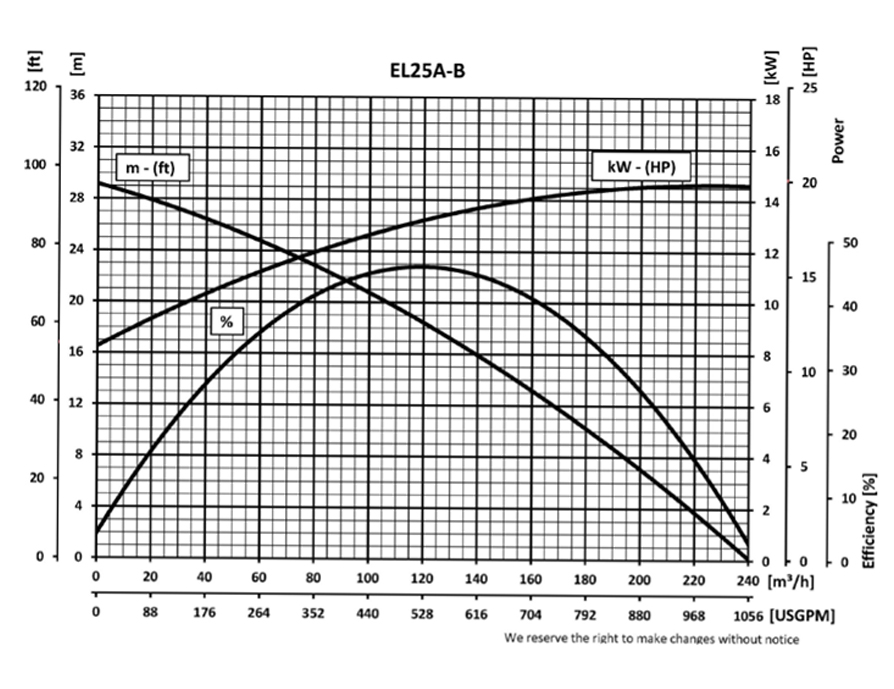

Performance Curves
