CFW300

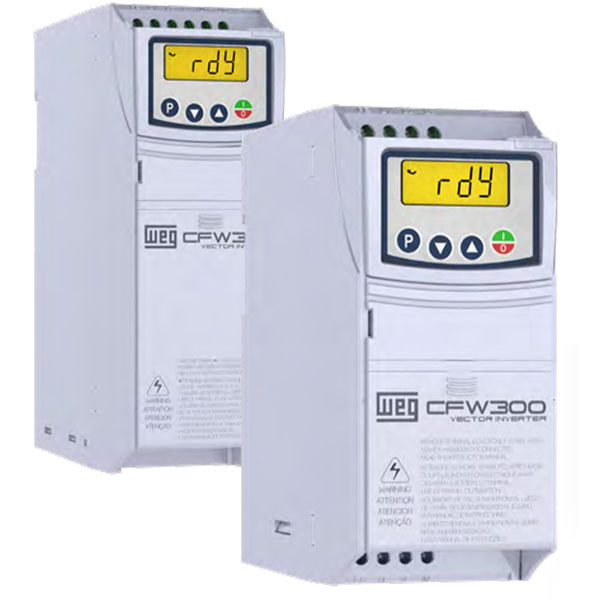

WEG LV Variable Frequency Drives and Soft Starters – Model# CFW300

Standard Features
• Single and three-phase voltage supply
• Din rail or surface mounting with screws
• Voltage range: 110-127 Vac and 200-240 Vac for single-phase models
• 200-240 Vac for three-phase models
• Current / Power range: up to 15.2 Amps / 3.7 kW (5 HP)
• Control mode: Scalar (V/Hz) or Voltage Vector (VVW)
• Switching frequency: 2.5, 5, 10 or 15kHz
• Overload capacity: 150% for 60 sec. every 10min, 200% for 3 sec. every 10min.
• Degree of protection: IP20
• Operating temperature: 14°F – 122°F (50°C); up to 140°F (60°C) with current derating (2% per 1°C above 50°C)
• Altitude: 0 – 3300 ft. (1000m); up to 13,200 ft. (4000m) with current derating (1% per100m above 1000m)
• Humidity: 5 to 95% non-condensing
• Integrated brake chopper for frame size B (not available for size A)
• Local keypad supplied as standard

Description

WEG LV Variable Frequency Drives and Soft Starters – Model# CFW300

Download Product Catalogue: Download

The CFW300 variable frequency drive is a high-performance VFD for three-phase induction motors. It is ideal for applications on machines or equipment that require precise control with easy setup and operation. The CFW300 features a compact size with contactor-style electrical connections (top in / bottom out). The VFD’s performance can be scaled to match the application by selecting WEG vector control (VVW) or scalar control (V/F). The CFW300 includes built-in operator interface (HMI) and SoftPLC with free WPS programming software for custom tailored control schemes. A variety of plug-in option modules for additional I/O and communications protocols may be added to provide extended capabilities, making the CFW300 a flexible and cost effective solution for your variable speed requirements.

Applications
• Centrifugal pumps
• Fans / Blowers
• Blenders / Mixers
• Centrifuges
• Compressors
• Conveyors
• Roller Tables
• Granulators
• Commercial Dryers
• Rotary Filters

Additional information

Nominal Power

0.25 – 0.5 HP
Input Voltage

100-127 Vac, 200-240 Vac
Phase

Single Phase, Three Phase
Other Specs

Overload capacity: 150% for 60 sec.
Degree of Protection: IP20
Ambient temperature: -10ºC to 50ºC
SoftPLC function built-in
Plug-in modules: I/O, USB and Fieldbus communication
Flash memory module: copy/paste parameters without applying power to the VFD
